Multi Vehicle DVR

Key Features

  • Dual Channel Synchronised Recording

  • HD Quality featuring two discrete Cameras for front and rear mounting

  • Automatic Recording – starts to record automatically whenever the vehicle is started

  • Auto Switch Off – Stops recording and shuts down automatically after vehicle is parked

  • Recorded video resolution of 1280 x 720 per camera

  • Captured “Event” files are retained and protected from being overwritten

  • Waterproof 140 degree wide angle lens cameras with hi-tack 3M adhesive mounts

  • Compact 6.5cm x 5.8cm DVR control unit with 2.0” TFT Colour Display

  • Optional Handlebar mounted event capture button for manual footage recording

  • Built in G-Shock impact sensor (variable sensitivity)

  • Event Pre-Record Function

  • Loop Recording to Micro SD Card (Up to 32GB supported)

  • Time and Date Stamp on footage

  • Powered with internal Battery Back-up (no battery packs to recharge)

  • Menu driven via built in screen for easy set up

  • Locking Automotive Grade waterproof connectors for long term reliability

  • No Overheating issues – allowing very long periods of continuous use

  • Waterproof GPS Sensor

  • AVI Video Format

  • Footage playback of both Front and Rear Cameras simultaneously

  • 25 f/s Video Frame Rate

  • Easy to fit – Easy to use.

  • Main DVR Unit can easily be removed for security – simply unplug from loom

  • Designed for Multi vehicle use, but also suitable Vans/Motor Homes (with Camera Extension Kit)

  • 12 Month Warranty

  • 7 Day Customer Support (via Email outside of normal working hours)

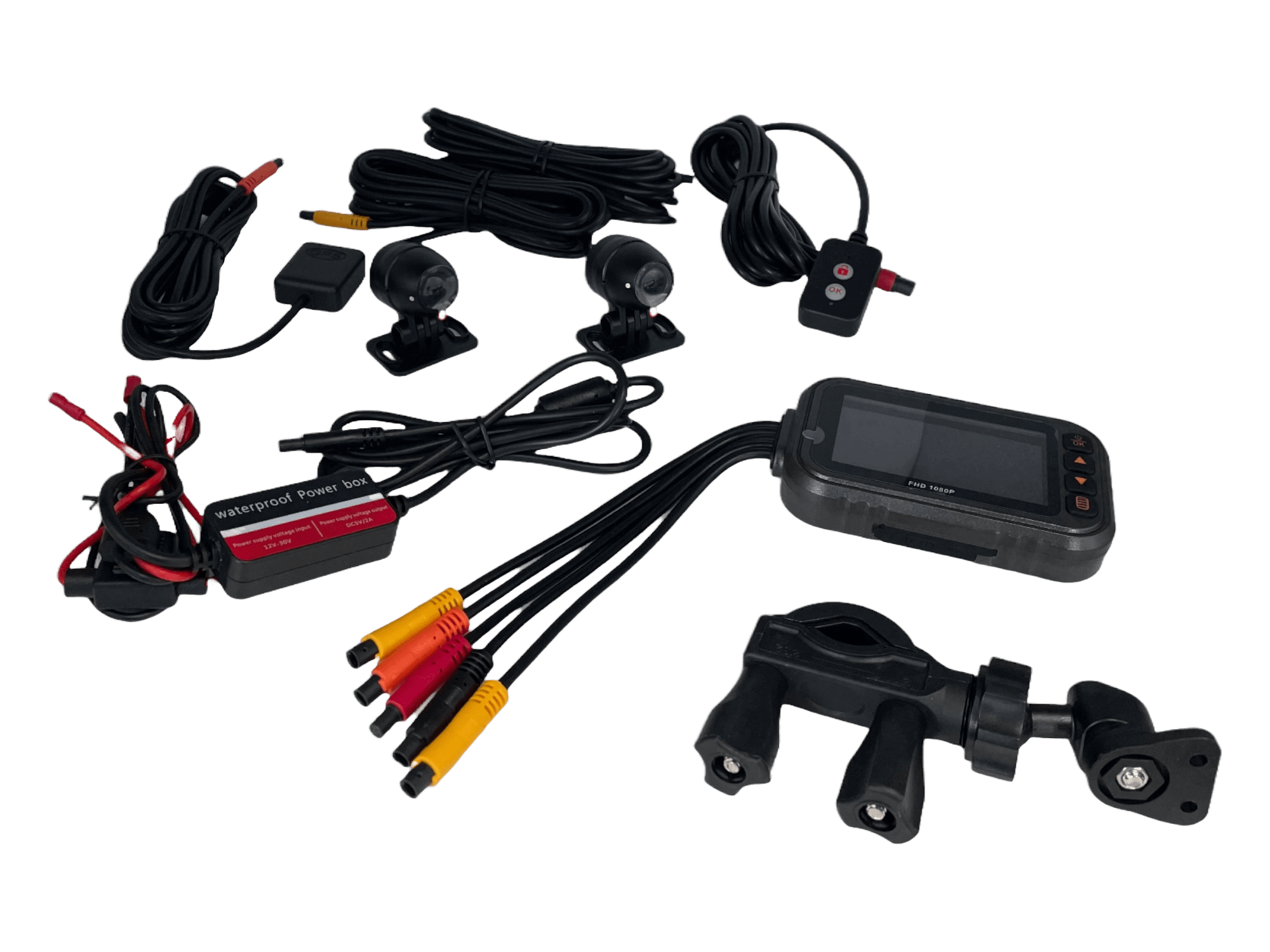

Our DVR comes complete with everything you need to install on any vehicle. The retail package consists of the following items;

Main Control Unit / DVR with built in high brightness colour display

  • 2x Waterproof HD Cameras for Front and Rear Mounting

  • 2.5 Metre Cable Length on each Camera

  • Power supply for 10v – 30v operation

  • Generous wiring loom with waterproof connectors for plug and play installation

  • Fixtures, Mounting Bracket, Genuine 3M-VHB Adhesive Mounts, Cable Ties etc

  • Mounted Event Capture Button for Manual Footage Recording

  • Waterproof GPS Module

Unlike some other Camera products on the market, our DVR uses automotive grade waterproof locking connectors for power and cameras, and not micro usb connectors. USB connectors are intended for computer or domestic products and are not designed to withstand the constant vibration and movement encountered on the roads or during an impact. Loose connectors, can eventually mean intermittent picture loss, video interference or entire lost video footage, at a time when you may rely on it the most.

GPS Module

The GPS module, will allow you to record the GPS position, speed, acceleration, etc within each recorded file whilst riding, which will then be displayed alongside the video footage when using the Nortek video playback software on a PC or Mac. A built in scrolling map window within the video player also displays the GPS road position of the Bike in relation to where the clip was recorded, and the direction of travel whilst the footage is being played back.

Speed information is not displayed on the actual raw video footage (Some customers may prefer not to have this information stamped and freely visible on the actual video, such as during a road side stop for example)
